1. Approach

Portable programming with the emC needs adaption of the operation system and the hardware.

HAL approach

  • Application Layer: The application and also parts of them (for unit tests) should be written independent from the hardware, the target platform.

  • Controller FunctionBlocks: means usual reused components, which are also target platform independent.

  • Frame: It is the known main(…​) routine but also the frames of all interrupts. There are target platform specific:

    • In the main(…​) routine some maybe hardware specific initializations should be done; The watchdog should be fulfilled int the main loop or maybe in interrupts.

    • The interrupt routines should be defined due to the platform. But in the interrupt a call to the Application layer routines, which are platform independent, should be done.

  • Hardware Abstraction: It defines the access to the hardware, only as interface. This definitions may be application specific or application group specific. It is not an unconditional approach to define an universal access. The Hardware Abstraction sources (they are usual header files) should be platform independent. It should be possible to implement it on several platforms.

  • Hardware Adaption Layer: This is the adaption between the Hardware Abstraction and the real hardware or the given Hardware Implementation Layer of the target platform. This part of software may be application-group specific, not universal. The sources of this layer are depending on the target platform. If the application should run on more as one platform (also a PC simulation), some different adaptions are necessary. For the test platform on PC emulations of the hardware in software can be used.

    • For platform A it is written, for platform B it should be able to adapt. Etc.

  • The Hardware Implementation Layer may be given by the target platform itself, as library or system headers. It should be used as given if sensible, not application (-group) specific.

2. Do not strive for an universal Hardware Abstraction Layer

It is not recommended to think firstly about a really universal hardware abstraction layer. Why not?

From the eyes of an application developer you may define your own proper hardware abstraction layer usable for all your applications. And of course for all platforms (this is the core goal).

But from the eyes of a hardware provider (delivers cards and operation systems) this approach has pitfalls:

  • a) It is too much and will be too complicated.

  • b) For your own approaches you may intent to build wrappers around given operations, because you are not (or you think that you are not) allowed to write your own hardware access routines.

  • c) A hardware vendor’s focus is usually on its own hardware platforms, not on all possible platforms. Therefore, the core objective of a hardware abstraction layer is not his focus.

  • d) The diversity of platforms which should be regarded, are too much.

  • e) If a worldwide standardization organization does this work - maybe…​.

Look considerate to the same points from your eyes as product / development owner:

  • a) The number of different hardware platforms is manageable.

  • b) You can make any operation proper and optimized for your requirements.

  • c) You have the focus of all your platforms. With farsightedness you can also think about some platforms in future.

  • d) as c)

  • e) You are your standardization organization by your own responsibilty, you know what you do and need.

Now, with some farsightedness, visions and/or knowledge and a proper exchange of experiences you can build your own abstraction layer proper also for other stackholder, friends or open source. The best will be spreaded.

3. The adaption layer is platform specific

You should have only one abstraction layer (in header files), but for any platform the specific adaption layer is necessary. Sometimes some stuff may be similar or identical, because the hardware of controllers are not so much different. But there may be less differences, the details. May be you can write common parts for some platforms (due to the rule "do not repeat yourself").

3.1. Optimized access, some possibilities

Often, a hardware access involves only a small operation, and this operation should not require much computing time. An example for that:

void outDACA_HAL(uint16 val);
  //fast algorithm:

It is an example to execute in a fast interrupt, write to a given Analog output on the controller to monitor program execution or monitor an internal value. It should need only …​less than 1 ┬Ás calculation time, better only 100 ns.

The implementation may be simple on a given controller:

void outDACA_HAL(uint16 val) {
  DacaRegs.DACVALS.bit.DACVALS = val;

This is for the Texas Instruments TMS320F2837xD controller. It has specific header files where the address of the DAC register (all hardware registers) are defined. The DAC has 12 bit. Hence exactly a bit field was defined, where the Uint16 DACVALS:12; is declared. The header files for hardware access are provided from the Hardware Implementation Layer in original TI header files.

If you do so, at least two disadvantages are given:

  • 1) If you don’t use the ultimate optimization level of compilation and linking, because the routine is written as sub routine a CALL statement in need in machine code. This needs additional machine cycles. The ultimate optimization level dissolves all calling operations over all files and produces after compilation the only necessary immediately access to the register. But not in all cases this optimization level of compilation and linking is possible, available or what else.

  • 2) Exactly, the DAC has 12 bits, and the hardware implementation level provides this fact. But you can also write:

void outDACA_HAL(uint16 val) {
  DacaRegs.DACVALS.all = val;

The original header files from TI also offer a

//original from TI, header file F2837xD_dac.h
struct DACVALS_BITS {                   // bits description
    Uint16 DACVALS:12;                  // 11:0 DAC Shadow Output Code
    Uint16 rsvd1:4;                     // 15:12 Reserved

    Uint16  all;
    struct  DACVALA_BITS  bit;

You can write to the whole register as 16 bit access. It is possible and have not any disadvantages. It is faster. The bits 15..12 are ignored.

But the problem 1) remains.

3.2. Optimized access with inline, access immediately to the hardware

If you write in a header:

inline void outDACA_HAL(uint16 val) {
  DacaRegs.DACVALS.bit.DACVALS = val;

then the call of this operation is inlined and optimized, independent of used optimization levels (except you forbid using inline). But then you can also write:

#define outDACA_HAL(VAL) DacaRegs.DACVALS.bit.DACVALS = (VAL)

But now this header is platform specific, it is a part of the Hardware adaption layer. You may get some problems:

  • a) You need also include the necessary headers from the Hardware Implementation Layer in your application. This increases the amount of headers to compile for your application code, which should be intrinsic platform independent. A problem may occur, if different styles of definition clashes. Often it is in range of basically definitions for example typedef int int32; in platform specific headers which clashes with a #define int32 int in other headers, which does the same but it is formally incompatible. Notably also that int32 is a user free identifier, should not used in system headers (from the platform). But you know the difference between theory and practice: The practice is varied.

Hence a good idea is: Do not include platform specific headers in your application!

  • b) If you have also a prototype forward definition of this operation, you may get an compiler error.

The solution of this problems is the following:

  • 1) Write your own header file as implementation layer for that parts of the platform which you need. Use your own style for variable types, which are compatible with your application. It means you does the work which are done by the hardware deliverer again. But it may be constructive.

  • 2) The idea is, build a header file for the inlined access routines for all your applications as the access to such things. It may be not too complex. You need immediately inlined access to some ports, no more. Use this one file independently of the fact if you need a specific port only. The compiler is fast enough to compile and remove the not used parts of the source. An inline operation definition does not create machine code if it is not used.

    The name of this universal header may be applstdHal_emC.h.

  • 3) due to 2) you need such one header for each of your platforms. This headers all have the same name, but of course there are placed in the platform specific directories proper to the platform specific include paths definition for the compilation.

  • 4) If you have this inline definition of your access, define also the DEFINED_operationName as shown in the code example above.

  • 5) Write in your common hardware abstraction layer header file to prevent the forward declaration:

void outDACA_HAL(uint16 val);
  • 6) Include the applstdHal_emC.h firstly before the abstraction layer header files.

With that approach you can use the inlined optimized imediately access to the controller resources.

3.3. Using an address pointer

For the adequate approaches as described in the chapter above there is another possibility, which is also very fast but more universal. It can be only used if the access is done to a full memory mapped register. This may be possible also for port bits if you know your controller and assembly language mappings by the compiler.

You have one compilation unit with a global pointer for each of the platforms:

uint16 volatile* const addrDACA = &DacaRegs.DACVALS.all;

That is for the same example as above.

In the hardware abstraction header file now you can write as inline:

extern_C uint16 volatile* const addrDACA;
static inline void outDACA_HAL(uint16 val) { *addrDACA = val; }

or maybe also as macro:

#define outDACA_HAL(VAL) (*addrDACA = (VAL))

This implementation is platform independent for all platforms, which have a memory mapped access to your DAC. It is also possible for the PC simulation test, which has not a DAC. But it may have a memory location for this value.

If you call the routine, only an access to a given hardware location is done. The address itself depends on your platform, of course, but the access seen from C-source level is the same for all.

In opposite to the really immediately access to the hardware resource, it may need 1..2 more machine cycles, because first the address should be loaded. But the hardware address of a port should also be loaded. The difference is rarely less, using a pointer register maybe versus using an immediately address access.

For a controller which should be accessed immediately, you have the possibility to define this immediately access due to the chapter before and set the DEFINED_outDACA_HAL only for this specific platform. So you can use both.

3.4. Ordinary forward definition and implementation

If the implementation of the hardware access is anyway more complex, for example need initialization of more registers, then the CALL machine code statement is not the ones expensive. Then you can use one forward declaration in the header file:

#ifndef DEFINED_myElaborateHALaccess
void myElaborateHALaccess(uint16 arg1, float arg2, Type* whatelse);

and write the proper implementation for all platforms. But you can also have also a platform specific inline due to chapter Optimized access with inline, access immediately to the hardware if necessary and possible for dedicated platforms.

4. Proposal for source tree organization, Components, more as one version archives

Presumed, the known maven standard directory layout is used (https://maven.apache.org/guides/introduction/introduction-to-the-standard-directory-layout.html). This is proper independent of using maven or gradle and well useable:

+-.build    ... build output (maybe redirected to RAM disk)
  +-main    ... the sources of the module, without test
  |  +-cpp  ... source parts in that language
  |  +-java ... and in other languages too
  +-test    ... all for test
  |  +-cpp  ... test parts in that language
  |  +-java ... and in other languages too
  |  +-testScripts
  +-docs    ... place for documentation

This tree is used for the emC test organization. Whereby the sources are stored in

        +-src_emC  ... The emC sources

This tree is proper for target specifica too. The src_emC is platform independent and application independent. The following supplementaion can be used for the other parts of the whole application sources:

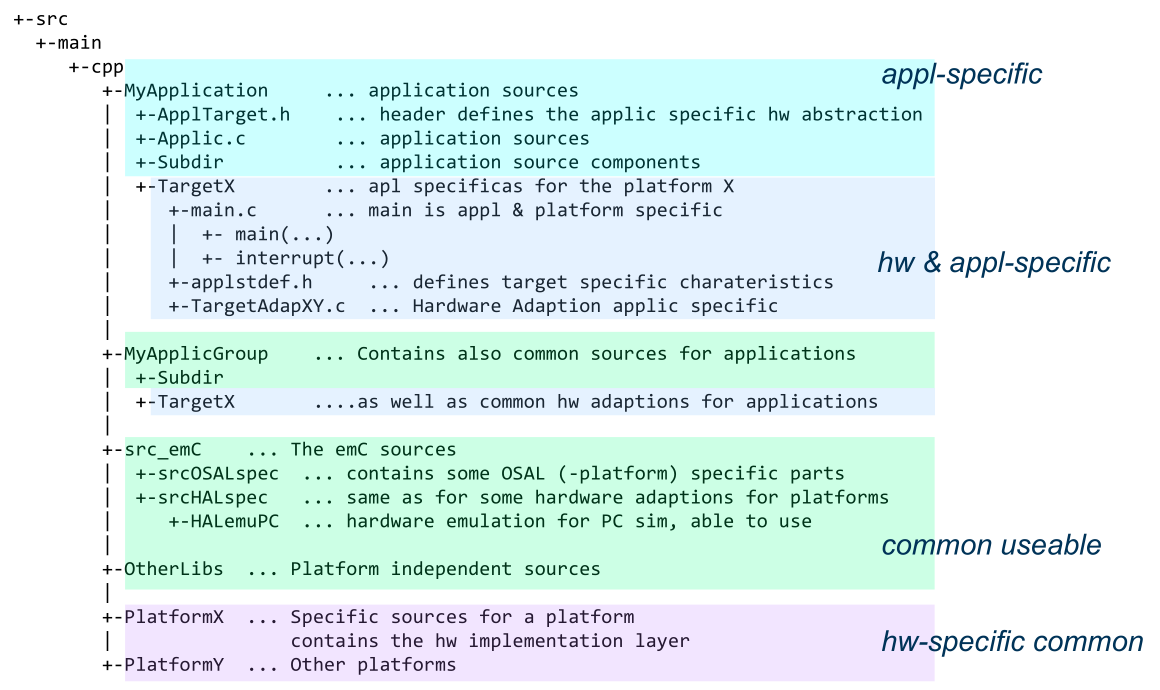

HAL srcTree

  • All sources are disposed in one src file tree, all sources can be stored as zip etc. proper to a product (except libraries of the tool).

  • For some parts of sources in this tree: more as one version archive may be existing

    • may be as own archive (referenced)

  • Parts of resused sources can be copied and compared, added to the application version archive, but the version control can also be retraced in the responsible main archive.

5. Example serial communication

This is adapted with one concept to embedded controller and OS-Windows. See Serial_HAL.html.
